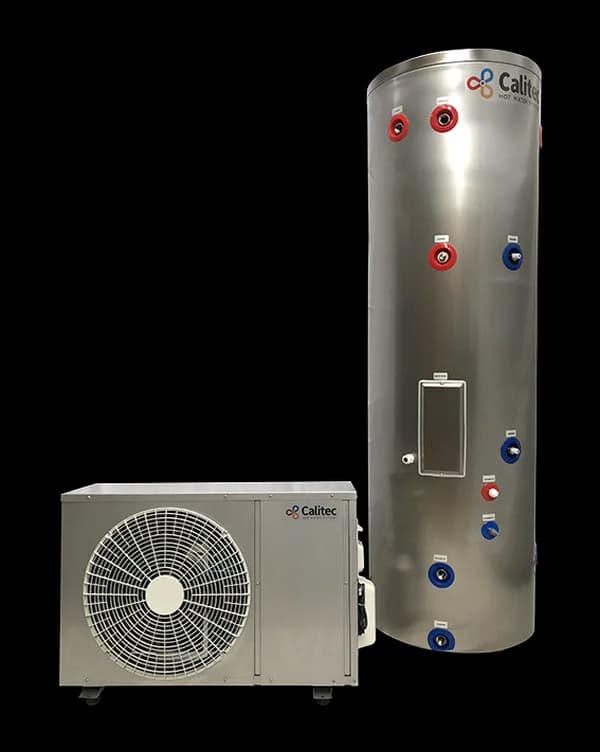

KP-50 Refrigerant Split System 400L + Wetback & Hydronic Coil
Calitec NZ
- 4.0
- COP
- 400 L
- Tank
- 9.8c
- Running Cost/kWh
- ≤56 dB(A)
- Noise
- R32
- Refrigerant
- —
- Installed from
Who is it a good fit for?
- Homes where the cylinder needs to be far from the heat pump — up to 20m refrigerant pipe run gives real flexibility on cylinder placement.
- Homes with a wood fire or wet-back system — the 300L + Wetback and 400L variants can accept input from solid fuel heating, reducing reliance on the heat pump in winter.
- Large households needing high-volume storage — the 400L variant is the largest tank in our database alongside the Rheem range.
- Those wanting central heating integration — the 400L + Hydronic coil can feed underfloor or radiator circuits.
- Solar PV owners — Wi-Fi and solar inverter input on all variants.
Review
The Calitec KP-50 range offers the most configuration flexibility of any heat pump water heater in our database. The base system is a refrigerant-cycling split: the outdoor unit contains the heat pump and the heat exchanger coil is built directly into the Calitec cylinder, eliminating the need for a water-to-refrigerant heat exchanger. The cylinder can be placed indoors or outdoors (up to 20m pipe run), and the 300L Outdoor variant allows both units fully outside — useful when internal space is limited. The 300L + Wetback and 400L + Wetback & Hydronic variants accept input from a wood fire or wet-back system, making this the only NZ heat pump water heater that can integrate with both solar PV and solid fuel heating.
COP of 4.0 at 15°C is honest and competitive for a split system using R32. The 20-year tank warranty matches the WH-70 and remains the strongest in the NZ market. Note: outdoor unit dimensions are pending verification with Calitec. Installed pricing is not yet confirmed — verify directly before quoting.
Specs
KP-50 Refrigerant Split System 400L + Wetback & Hydronic CoilCost & efficiency
- Typical installed price
- —
- COP (rated)
- 4.0
- Test conditions
- @ 15°C ambient
- Test standard
- Not provided
- Eff. cost/kWh
- 9.8c
- Input power
- 1.1 kW
- Heating capacity
- 4 kW
- Household size
- 5+ people
Hot water performance
- Tank size
- 400 L
- Max temperature
- 60 °C
- Hot water output
- ~85L/hr @ ΔT=40°C
- Recovery rate
- 85 L/hr @ ΔT=40°C
- Max water pressure
- —
- Tank material
- Duplex stainless steel
- Tank insulation
- Not provided
- Backup element
- 3 kW electric backup element + wetback coil + hydronic coil
Installation & dimensions
- System type
- Split unit
- Indoor / outdoor
- Split — outdoor unit; cylinder indoor or outdoor
- Min clearance / space
- See installation manual
- Min space required
- Max 20 m pipe; wetback + hydronic coils
- Dimensions (H×W×D mm)
- 900×315×545 mm (outdoor unit W×D×H) — Verify
- Unit weight (empty)
- —
Climate & environment
- Refrigerant
- R32 (GWP 675)
- Operating range
- -10 °C to 45 °C
- Noise
- ≤56 dB(A)
- Heating capacity
- 4 kW
Controls & features
- Display type
- —
- Control modes
- Set & forget; timer function
- Smart / Wi-Fi
- Yes
- Solar PV ready
- Yes
Warranty & support
- Tank warranty
- 20 years (Calitec cylinder)
- Parts & labour warranty
- 5 years (outdoor unit)
- Installer restriction
- Any licensed plumber
- Supplier / brand
- Calitec NZ
