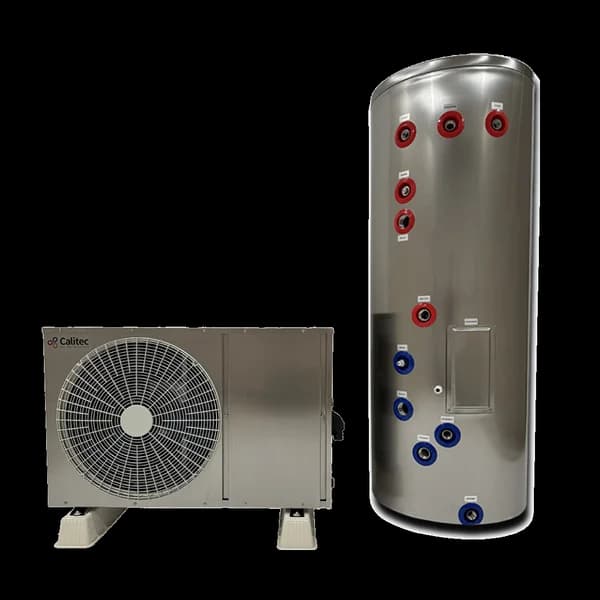

WH-70 Water Heater + 250L Cylinder
Calitec NZ
- 5.0
- COP
- 250 L
- Tank
- 7.8c
- Running Cost/kWh
- ≤53 dB(A)
- Noise
- R290
- Refrigerant
- —
- Installed from
Who is it a good fit for?
- Households wanting the longest tank warranty available — 20 years on the cylinder is unmatched in NZ.
- Coastal and rural homes — coastal-rated case; can be sited well away from the cylinder (up to 20m).
- Solar PV owners — Wi-Fi and solar inverter input allow smart solar diversion.
- Smaller households (2–3 people) — the 250L tank with 124L/hr recovery suits everyday demand.
- Those who want a NZ-designed product — Calitec is a NZ business that designed this system for local conditions.
Review
Performance & Efficiency:
COP of 5.0 at 18°C ambient is strong, and the R290 refrigerant (GWP 3) is the lowest-impact option available.
The Calitec WH-70 is a genuinely unusual product in the NZ market — it uses a water circulation system rather than the refrigerant-to-tank approach of most heat pumps. The outdoor mono block heats water directly and circulates it to the separate cylinder, which means the cylinder can be positioned up to 20 metres away and placed either indoors or outdoors. Allowing a lot of flexibility over placement.
Features:
- 20 year warranty: The duplex 2205 stainless steel cylinder is the headline spec here: Calitec backs it with a 20-year warranty, which is the longest tank warranty in our entire database by a significant margin.
- Wi-Fi control, solar PV input, and a 3kW backup element are all standard. Designed specifically for NZ conditions, with a coastal-rated 304 stainless steel case on the outdoor unit.
- Pricing: Unit pricing is confirmed RRP including GST and NI delivery.
Supply and Service:
Specs
WH-70 Water Heater + 250L CylinderCost & efficiency
- Typical installed price
- —
- COP (rated)
- 5.0
- Test conditions
- COP 4/5/6.2 @ 7°C/18°C/30°C ambient
- Test standard
- AS/NZS 5125.1.2014 (CVC Testing Technology Ltd)
- Eff. cost/kWh
- 7.8c
- Input power
- 1.36 kW
- Heating capacity
- 5.83 kW
- Household size
- 2–3 people
Hot water performance
- Tank size
- 250 L
- Max temperature
- 65 °C
- Hot water output
- ~124L/hr @ ΔT=40°C
- Recovery rate
- 124 L/hr @ ΔT=40°C (5.83 kW heating output)
- Max water pressure
- 500
- Tank material
- Duplex 2205 stainless steel
- Tank insulation
- Polyurethane foam, encased in double stainless steel shell
- Backup element
- 3 kW electric backup element (in Calitec cylinder)
Installation & dimensions
- System type
- —
- Indoor / outdoor
- Outdoor (unit); cylinder indoor or outdoor
- Min clearance / space
- See installation manual
- Min space required
- See installation manual
- Dimensions (H×W×D mm)
- 638×1050×350 mm (unit) (cylinder)
- Unit weight (empty)
- —
Climate & environment
- Refrigerant
- R290 (GWP 3)
- Operating range
- -10 °C to 45 °C
- Noise
- ≤53 dB(A)
- Heating capacity
- 5.83 kW
Controls & features
- Display type
- —
- Control modes
- Set & forget; 4 timer settings; Wi-Fi app; third-party/solar PV inverter input
- Smart / Wi-Fi
- Yes
- Solar PV ready
- Yes
Warranty & support
- Tank warranty
- 20 years (Calitec cylinder)
- Parts & labour warranty
- 5 years (mono block)
- Installer restriction
- Any licensed plumber
- Supplier / brand
- Calitec NZ
