Goes Electric

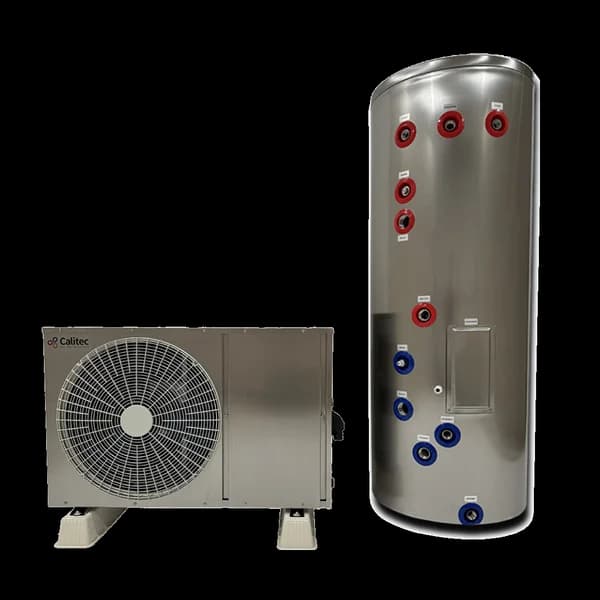

Calitec NZ WH-70 Water Heater + 300L Cylinder

WH-70 Water Heater + 300L Cylinder
5.0
COP
300 L
Tank
7.8c
Running Cost/kWh
Max 53 dB(A)
Noise
R290
Refrigerant
—
Installed from

Who is it a good fit for?

  • Households wanting the longest tank warranty available — 20 years on the cylinder is unmatched in NZ.
  • Coastal and rural homes — coastal-rated case; can be sited well away from the cylinder (up to 20m).
  • Solar PV owners — Wi-Fi and solar inverter input allow smart solar diversion.
  • Smaller households (2–3 people) — the 250L tank with 124L/hr recovery suits everyday demand.
  • Those who want a NZ-designed product — Calitec is a NZ business that designed this system for local conditions.

Review

Performance & Efficiency:

Calitec designs it’s own product range for New Zealand’s unique challenges and offers the longest warranties available on the New Zealand market to reflect their confidence in the quality and durability of their products.

COP of 5.0 at 18°C ambient is strong, and the R290 refrigerant (GWP 3) is the lowest-impact option available.

The Calitec WH-70 is a genuinely unusual product in the NZ market — it uses a water circulation system rather than the refrigerant-to-tank approach of most heat pumps. The outdoor mono block heats water directly and circulates it to the separate cylinder, which means the cylinder can be positioned up to 20 metres away and placed either indoors or outdoors. Allowing a lot of flexibility over placement.

Features:

  • 20 year warranty: The duplex 2205 stainless steel cylinder is the headline spec here: Calitec backs it with a 20-year warranty, which is the longest tank warranty in our entire database by a significant margin.
  • Wi-Fi control, solar PV input, and a 3kW backup element are all standard. Designed specifically for NZ conditions, with a coastal-rated 304 stainless steel case on the outdoor unit.
  • Pricing: Unit pricing is confirmed RRP including GST and NI delivery.

Supply and Service:

Calitec is a Whangarei-based, NZ-focused hot water heat pump product designer and supplier, distributing nationwide with free delivery across the North Island and depot pickup available for the South Island and rural customers.

Installation runs through Calitec's own network of experienced installers, or choose a licensed plumber. Products are backed by a 5-year warranty on the mono block unit and a standout 20-year warranty on Calitec cylinders, with ongoing support via phone, email and online technical resources.

Specs

Calitec NZ WH-70 Water Heater + 300L Cylinder

Cost & efficiency

Typical installed price
—
COP (rated)
5.0
Test conditions
COP 4/5/6.2 @ 7°C/18°C/30°C ambient
Test standard
AS/NZS 5125.1.2014
Eff. cost/kWh
7.8c
Input power
1.36 kW
Heating capacity
6.5 kW
Household size
3–4 people

Hot water performance

Tank size
300 L
Max temperature
60 °C
Hot water output
~540L @ 40°C (2-4 person households)
Recovery rate
2.5 hours (300L tank, ambient ≥15°C, inlet ≥15°C, outlet 60°C)
Max water pressure
—
Tank material
Duplex 2205 stainless steel (1mm thickness)
Tank insulation
Polyurethane (65mm)
Backup element
3 kW

Installation & dimensions

System type
Split unit
Indoor / outdoor
Split — outdoor heat pump + indoor/outdoor tank
Min clearance / space
See installation manual
Min space required
See installation manual
Dimensions (H×W×D mm)
Unit 1050×350x638 mm; Tank 1800ר600 mm
Unit weight (empty)
Unit: 60 kg; Tank: 75 kg

Climate & environment

Refrigerant
R290 (GWP 3)
Operating range
-10 °C to 43 °C
Noise
Max 53 dB(A)
Heating capacity
6.5 kW

Controls & features

Display type
LCD with weatherproof cover or wired (indoor)
Control modes
Programmable Timer, Set and Forget, Child Lock
Smart / Wi-Fi
Yes
Solar PV ready
Yes

Warranty & support

Tank warranty
20 years
Parts & labour warranty
5 years parts and labour
Installer restriction
Licensed plumber
Supplier / brand
Calitec NZ
