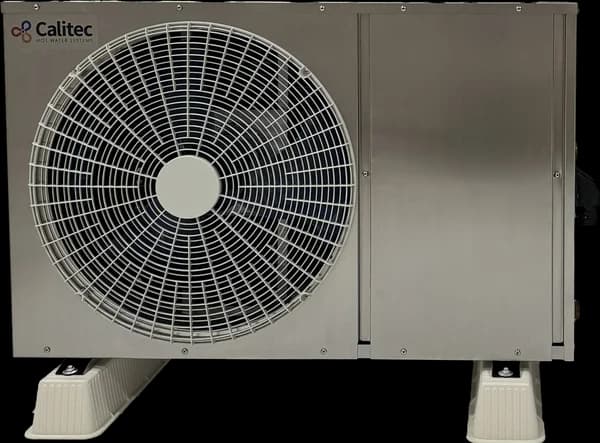

Calitec NZ WH-70 Unit

- 5.0
- COP
- —
- Tank
- 7.8c
- Running Cost/kWh
- Max 53 dB(A)
- Noise
- R290
- Refrigerant
- —
- Installed from
Who is it a good fit for?
- Households wanting the longest tank warranty available — 20 years on the cylinder is unmatched in NZ.
- Coastal and rural homes — coastal-rated case; can be sited well away from the cylinder (up to 20m).
- Solar PV owners — Wi-Fi and solar inverter input allow smart solar diversion.
- Smaller households (2–3 people) — the 250L tank with 124L/hr recovery suits everyday demand.
- Those who want a NZ-designed product — Calitec is a NZ business that designed this system for local conditions.
Review
Performance & Efficiency:
Calitec designs it’s own product range for New Zealand’s unique challenges and offers the longest warranties available on the New Zealand market to reflect their confidence in the quality and durability of their products.
COP of 5.0 at 18°C ambient is strong, and the R290 refrigerant (GWP 3) is the lowest-impact option available.
The Calitec WH-70 is a genuinely unusual product in the NZ market — it uses a water circulation system rather than the refrigerant-to-tank approach of most heat pumps. The outdoor mono block heats water directly and circulates it to the separate cylinder, which means the cylinder can be positioned up to 20 metres away and placed either indoors or outdoors. Allowing a lot of flexibility over placement.
Features:
- 20 year warranty: The duplex 2205 stainless steel cylinder is the headline spec here: Calitec backs it with a 20-year warranty, which is the longest tank warranty in our entire database by a significant margin.
- Wi-Fi control, solar PV input, and a 3kW backup element are all standard. Designed specifically for NZ conditions, with a coastal-rated 304 stainless steel case on the outdoor unit.
- Pricing: Unit pricing is confirmed RRP including GST and NI delivery.
Supply and Service:
Calitec is a Whangarei-based, NZ-focused hot water heat pump product designer and supplier, distributing nationwide with free delivery across the North Island and depot pickup available for the South Island and rural customers.
Installation runs through Calitec's own network of experienced installers, or choose a licensed plumber. Products are backed by a 5-year warranty on the mono block unit and a standout 20-year warranty on Calitec cylinders, with ongoing support via phone, email and online technical resources.
Specs
Calitec NZ WH-70 UnitCost & efficiency
- Typical installed price
- —
- COP (rated)
- 5.0
- Test conditions
- Ambient 18°C DB / water ΔT= 40°C
- Test standard
- AS/NZS 5125.1.2014
- Eff. cost/kWh
- 7.8c
- Input power
- 1.3 kW
- Heating capacity
- 6.5 kW
- Household size
- —
Hot water performance
- Tank size
- —
- Max temperature
- 60 °C
- Hot water output
- ~124 L per hour @ water ΔT= 40°C
- Recovery rate
- —
- Max water pressure
- —
- Tank material
- —
- Tank insulation
- —
- Backup element
- —
Installation & dimensions
- System type
- Split unit
- Indoor / outdoor
- Split — outdoor heat pump (+ indoor/outdoor tank)
- Min clearance / space
- —
- Min space required
- Max 20m piping; see installation manual
- Dimensions (H×W×D mm)
- HP unit: 1050x350x638
- Unit weight (empty)
- 60 kg
Climate & environment
- Refrigerant
- R290 (GWP 3)
- Operating range
- -10 °C to 43 °C
- Noise
- Max 53 dB(A)
- Heating capacity
- 6.5 kW
Controls & features
- Display type
- —
- Control modes
- Programmable Timer, Set and Forget, Child Lock
- Smart / Wi-Fi
- Yes
- Solar PV ready
- Yes
Warranty & support
- Tank warranty
- —
- Parts & labour warranty
- 5 years parts and labour
- Installer restriction
- —
- Supplier / brand
- Calitec NZ
