Goes Electric

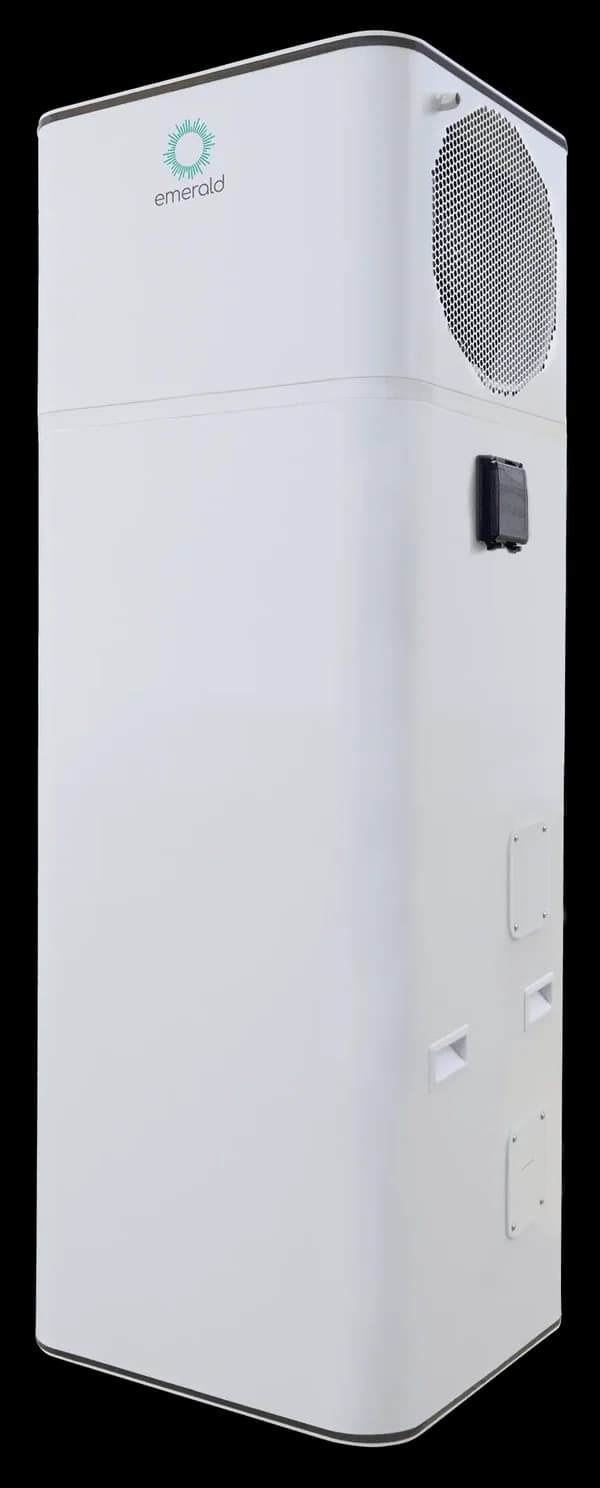

Emerald Planet 220L

Emerald Planet 220L
4.9
COP
220 L
Tank
8.0c
Running Cost/kWh
49 dB(A)
Noise
R290
Refrigerant
—
Installed from

Who is it a good fit for?

  • Noise-sensitive installations — the ≤39 dB silent mode is among the quietest of any integrated HPHW unit available in New Zealand. Ideal if the unit will be installed near a bedroom window or on a shared wall.
  • Solar homes — Solar Soaker mode schedules heating to absorb surplus PV generation without requiring a separate solar controller or smart relay.
  • Families of 4–5 (270L) or 5+ people (320L) — wanting high-efficiency hot water with genuine app control and safety features.
  • Hygiene-conscious households — the automatic daily Legionella sterilisation cycle adds peace of mind without manual intervention.

What owners say

Damien from St Albans wearing orange stands smiling and pointing at his new Emerald hot water heat pump.
“I needed the cupboard space for a MVHR system. I decided after a seminar I organised where we had five HWHP suppliers attend. Just getting used to it. I think I would recommend - just need to trial it for a bit. ”
Damien, St Albans
“I have modelled the ongoing cost to operate the hot water heat pump and it is expected to provide around a $900 saving per year when compared to the cost of reticulated LPG in Christchurch. This greatly improves our household cashflow with two young kids. A HWHP is by far the most efficient and effective”
Michael, Burnside

Review

Performance & Efficiency:

The available in 220L and 320L model posts the highest COP (5.2) of the three sizes — unusual, as larger tanks typically carry a slight efficiency penalty in this category. All models use a DC inverter compressor that continuously adjusts to ambient conditions rather than cycling on and off, which delivers consistent efficiency across a wider range of temperatures. The optional -E variant adds a 1.6kW element for backup boosting.

Features:

  • The standout feature is silent mode: which drops noise to ≤39 dB(A) at 3 metres by reducing fan speed, making this one of the quietest integrated heat pumps available in New Zealand.
  • Solar Soaker, Emerald’s PV diversion mode: schedules heating around solar generation windows without needing a separate controller.
  • Legionella auto-cycle: runs a daily high-temperature sterilisation cycle automatically — a safety feature often absent in lower-cost units which may run these cycles less often.
  • The Emerald app (iOS/Android): handles scheduling, timers, and remote control.

Supply & Service Network:

The Emerald Planet is distributed by Ecobulb NZ. It is an Australian-designed DC inverter heat pump from Emerald Energy, a company with roots in the renewable energy sector since 2006.

Specs

Emerald Planet 220L

Cost & efficiency

Typical installed price
—
COP (rated)
4.9
Test conditions
A20/15°C, Water 15–55°C
Test standard
AS/NZS 4234
Eff. cost/kWh
8.0c
Input power
0.56 kW
Heating capacity
2.7 kW
Household size
3–4 people

Hot water performance

Tank size
220 L
Max temperature
60 °C
Hot water output
58 L/hr @ ΔT=40°C (standard); 112 L/hr booster with element
Recovery rate
58 L/hr standard; 112 L/hr booster (with element)
Max water pressure
—
Tank material
Enamel (carbon steel + diamond enamel; 2.5mm wall / 3.0mm dome)
Tank insulation
Not provided
Backup element
Optional 1.6 kW element (EE-HWS-A1-220E); standard model no element

Installation & dimensions

System type
Integral (all-in-one)
Indoor / outdoor
Outdoor all-in-one vertical unit
Min clearance / space
See installation manual
Min space required
See installation manual
Dimensions (H×W×D mm)
600×600×1598mm (W×D×H)
Unit weight (empty)
—

Climate & environment

Refrigerant
R290 (GWP 3)
Operating range
-7 °C to 43 °C
Noise
49 dB(A)
Heating capacity
2.7 kW

Controls & features

Display type
—
Control modes
Standard / Silent / Booster modes; 3 timers + weekly; Solar Soaker (Smart Actions); Legionella daily auto-cycle; Emerald app iOS + Android
Smart / Wi-Fi
Yes
Solar PV ready
Yes

Warranty & support

Tank warranty
5 years system
Parts & labour warranty
2 years labour and service
Installer restriction
Any licensed plumber
Supplier / brand
Emerald
